Introduction to DIY Solar Kits
Homeowners seeking renewable energy solutions often face high upfront costs for professional solar installations. DIY solar kits address this challenge by providing pre-packaged components that allow individuals to handle much of the assembly and mounting. These kits typically range from basic grid-tied systems to more advanced setups, enabling total project expenses to stay under $15,000 when paired with careful selection and execution.
Selecting the right kit involves assessing household energy needs, roof space, and local incentives. Basic kits include panels, racking, and inverters, while premium options add batteries or hybrid inverters for backup capabilities during outages. Verify that every component carries UL listing and complies with National Electrical Code (NEC) standards. Non-compliant or mismatched parts risk warranty invalidation and inspection failures, potentially increasing long-term expenses.
Step-by-Step Guide: Installing a DIY Solar Kit
Approach the installation methodically, as each phase depends on the previous one. Regular checks prevent errors that could require expensive fixes later. Gather all tools, including a torque wrench, multimeter, and safety gear, before starting.
1. Site Preparation
Begin by clearing the chosen roof or ground area of any debris, such as leaves or loose materials. Assess shading from nearby trees, chimneys, or vents using a solar pathfinder or observation over a full day. Locate and mark rafter positions with a stud finder or specialized rafter tool. Double-check that all dimensions align precisely with the system design plan to ensure optimal panel placement.
2. Mount the Racking System
Apply flashing and waterproof seals at penetration points to protect against leaks. Fasten the rails securely to rafters using stainless steel lag bolts, applying torque as specified by the manufacturer with a calibrated screwdriver. Proper alignment prevents undue stress on panels, which could lead to structural failures or warranty issues.

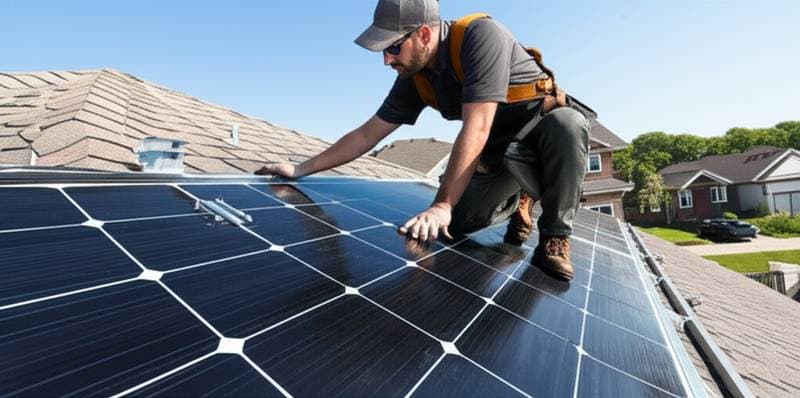

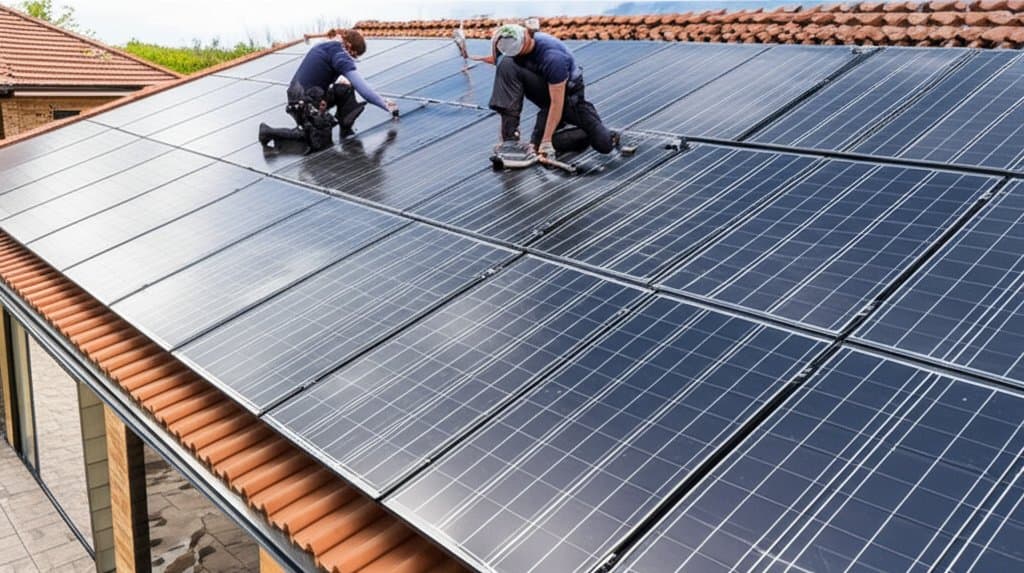

3. Secure the Solar Panels
Hoist panels into position using safe lifting techniques, ideally with assistance to avoid strains. Fasten them using mid-clamps for interior edges and end-clamps for outer ones. Confirm straight alignment through visual inspection and level checks. Refrain from excessive tightening, as it may damage panel frames or glass surfaces.
4. Handle Wiring Connections
Join MC4 connectors firmly until they produce a distinct click, ensuring secure electrical contact. Organize cables in tidy runs, fastening them with clips rated for UV exposure. Elevate wires above the roof surface to minimize heat buildup and prolong insulation life.
5. Establish Grounding and Bonding
Fix grounding lugs to each rail and link them using bare copper wire of appropriate gauge. Test for continuity across all metallic components with a multimeter. Adequate grounding mitigates shock risks and protects against electrical surges.
6. Install the Inverter
Position the inverter close to the main service panel, away from direct sunlight, and on a surface resistant to fire. Adhere to ventilation spacing guidelines to prevent overheating. Attach DC input cables from the panel array, but defer AC output wiring to a qualified electrician.
7. Arrange for Inspection and Final Connections
Contact the local Authority Having Jurisdiction (AHJ) to schedule a permit inspection. The official will examine wiring integrity, labeling accuracy, and grounding effectiveness. Upon passing, a licensed electrician performs the AC integration to the home's electrical system and coordinates with the utility for grid interconnection.
8. Activate and Monitor the System
Once the utility grants permission, power on the inverter and observe initial output. Utilize companion mobile applications, if available, to track real-time energy production. Document starting performance metrics to establish benchmarks for ongoing evaluations.
Addressing Common Post-Installation Issues
Systems occasionally exhibit anomalies after startup, such as fluctuating outputs or error alerts. Early detection allows for swift resolutions without major disruptions.
Key warning signs include:
- Abrupt decreases in energy production
- Illuminated fault indicators or diagnostic codes on the inverter
- Localized overheating at connectors or circuit breakers
- Unsecured or oxidized connection points
- Signs of water ingress in junction enclosures
In response to these issues, isolate the system via the primary disconnect switch. Reach out to a certified electrician or the kit provider's support team for guidance. Avoid disassembling enclosed units like inverters or batteries unless certified training permits it.
Situations Requiring Immediate Professional Intervention
Halt all activities and summon a licensed electrician under these circumstances:
- Observation of sparks or unusual humming near electrical junctions
- Frequent tripping of circuit breakers during preliminary tests
- Detection of dampness in wire enclosures
- Inability to confirm correct polarity or electrical continuity using testing equipment
- Uncertainty regarding grounding or bonding configurations
Professionals employ advanced diagnostics, such as insulation resistance testing, precise torque application, and thermal cameras, to uncover concealed problems. Their expertise safeguards against personal harm and equipment damage.
Advancing Your Solar Project
DIY solar kits democratize access to clean energy by curbing initial investments. Success hinges on thorough preparation, vigilant safety observance, and strict code compliance. Obtain estimates from trusted suppliers and familiarize yourself with local permitting processes from the outset. Involve a licensed electrician during planning to streamline the interconnection phase.
Embracing solar power demands diligence and accuracy. Through integrated DIY execution and expert supervision, homeowners secure dependable energy reductions around the $15,000 threshold, ensuring homes remain secure and regulation-compliant.
